Description
The MINDER pulley is designed for rescue professionals. Its special side plates are designed for use with a Prusik friction hitch in progress-capture systems. High-strength and very high efficiency, it is built for intensive use and handling heavy loads.
Details

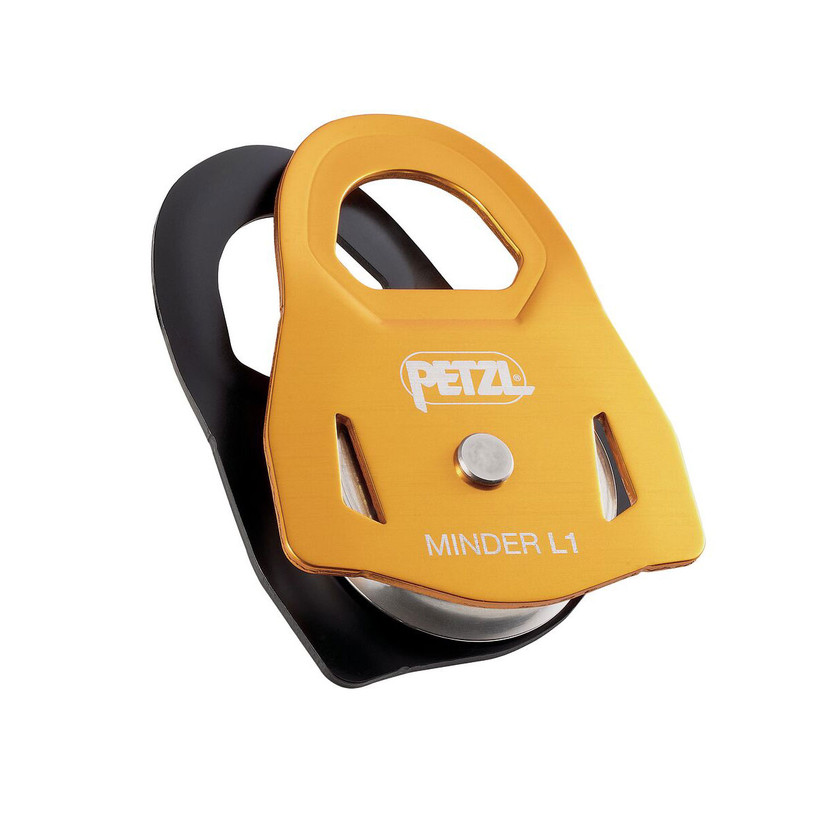

L1
- Use in progress-capture systems:
- Moving side plates designed for use with a Prusik friction hitch
- Designed to handle heavy loads and for intensive use:
- Large-diameter sheave mounted on sealed ball bearings provides very high efficiency
- Large attachment holes fit up to three carabiners for ease of use
- Specific side plate design protects the rope path
Specifications
- Rope compatibility: 6 to 13 mm
- Sheave diameter: 51 mm
- Ball bearings: Yes
- Efficiency: 97 %
- Maximum working load: 8 kN
- Breaking strength: 36 kN
- Weight: 237 g
- Certification(s): CE EN 12278, NFPA General Use, XF 494 General
- Material(s): Aluminum, stainless steel
L2
- Use in progress-capture systems:
- Moving side plates designed for use with a Prusik friction hitch
- Designed to handle heavy loads and for intensive use:
- Large-diameter sheave mounted on sealed ball bearings provides very high efficiency
- Possible to set up complex haul systems, with two parallel-mounted sheaves and an auxiliary attachment point
- Large attachment holes fit up to three carabiners for ease of use
- Specific side plate design protects the rope path
Specifications
- Rope compatibility: 6 to 13 mm
- Sheave diameter: 51 mm
- Ball bearings: Yes
- Efficiency: 97 %
- Maximum working load: 12 kN
- Breaking strength: 40 kN
- Breaking strength of the auxiliary attachment point: 22 kN
- Weight: 436 g
- Certification(s): CE EN 12278, NFPA General Use, XF 494 General
- Material(s): Aluminum, stainless steel
S1
- Use in progress-capture systems:
- Moving side plates designed for use with a Prusik friction hitch
- Designed for handling moderate loads:
- Sheave mounted on sealed ball bearings provides high efficiency
- Lightweight and compact, ideal for everyday work-at-height use or for on-site rescue
- Large attachment holes fit up to two carabiners for ease of use
- Specific side plate design protects the rope path
- Attachment holes allow most European-standard carabiners to rotate
Specifications
- Rope compatibility: 6 to 11 mm
- Sheave diameter: 25 mm
- Ball bearings: Yes
- Efficiency: 91 %
- Maximum working load: 5 kN
- Breaking strength: 23 kN
- Weight: 71 g
- Certification(s): CE EN 12278, UIAA, NFPA Technical Use, XF 494 Light
- Material(s): Aluminum, stainless steel
S2
- Use in progress-capture systems:
- Moving side plates designed for use with a Prusik friction hitch
- Designed for handling moderate loads:
- Sheave mounted on sealed ball bearings provides high efficiency
- Possible to set up complex haul systems, with two parallel-mounted sheaves and an auxiliary attachment point
- Compact and lightweight
- Specific side plate design protects the rope path
- Attachment holes allow most European-standard carabiners to rotate
Specifications
- Rope compatibility: 6 to 11 mm
- Sheave diameter: 25 mm
- Ball bearings: Yes
- Efficiency: 91 %
- Maximum working load: 6 kN
- Breaking strength: 23 kN
- Breaking strength of the auxiliary attachment point: 12 kN
- Weight: 123 g
- Certification(s): CE EN 12278, UIAA, NFPA Technical Use, XF 494 Light
- Material(s): Aluminum, stainless steel
