Rope Logic

Rope Logic Loopie with 1/2" Rigging Block

$262.99-to$273.99
SKU:
PID19690

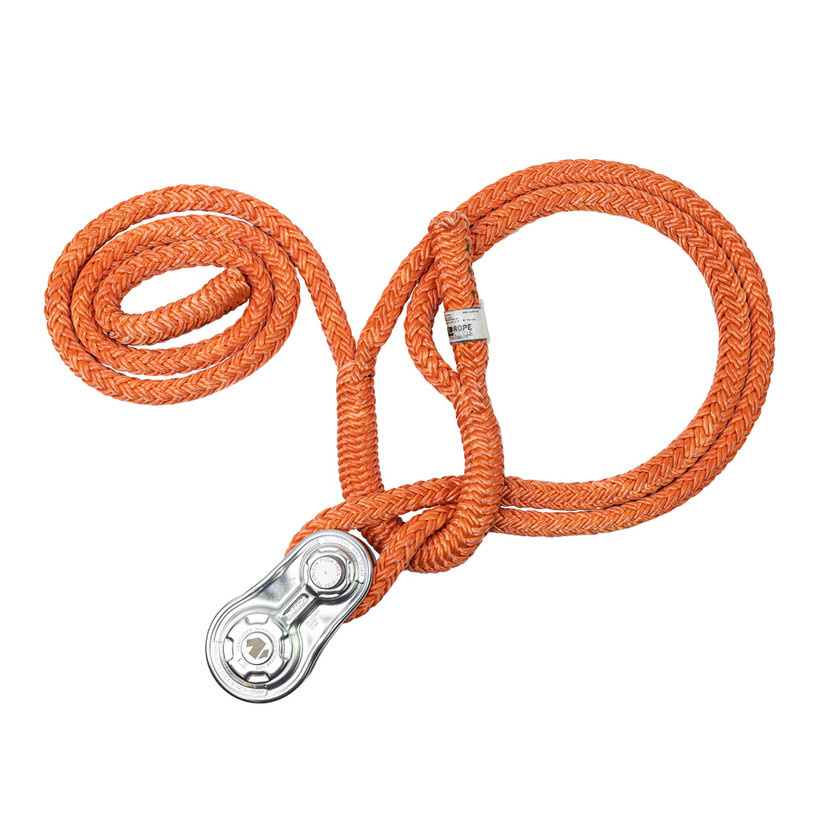

The Rope logic Loopie with Notch 1/2" Rigging Block is a small sized lightweight arborist block that accepts working lines up to 1/2" (16mm).

Active slide of Rope Logic Loopie with 1/2
Pick: (Required)

Description

The Rope logic Loopie with Notch 1/2" Rigging Block is a small sized lightweight arborist block that accepts working lines up to 1/2" (16mm).

Details

Notch 5/8" Rigging Block

Rope Logic 5/8" Loopie Sling

Rope Logic 3/4" Loopie Sling

MBS (5/8" Sling): 16,500lbs (73kN)

MBS (3/4" Sling): 22,000lbs (97kN)

Sling Length (5/8" Sling): 3' to 6'

Sling Length (3/4" Sling): 2' to 8'

Block Specs:

  • 20 kN WLL / 100 kN MBS
  • Hot forged aluminum side plates with rope friendly rounded cheeks
  • Precision CNC machined aluminum sheaves with wide bend radii
  • Low profile, secure, easy to-open captive screw pin lock
  • High wall, full diameter, improved anchor sling protection
  • Wide, concave upper sheave accepts 5/8” anchor slings
  • Flared side-plates reduce twisting in complex rigging scenarios
  • WORKING LOAD LIMIT: (WLL) 20 kN (4,496 lbs.)
  • MBS: 100 kN (22,480 lbs.)
  • MAX WORKING LINE DIAMETER: 1/2 in (13mm)
  • MAX SLING DIAMETER: 5/8 in (16mm)
  • UPPER SHEAVE DIAMETER: .75 in (19mm)
  • LOWER SHEAVE DIAMETER: 1.5 in (38mm)
  • HEIGHT: 4.7 in (118mm)
  • WIDTH: 2.7 in (68mm)
  • WEIGHT: 1 lb. (.45kg)
  • SIDEPLATE MATERIAL: Aluminum
  • SHEAVE MATERIAL: Aluminum
  • AXLE MATERIAL: Stainless Steel
