Description

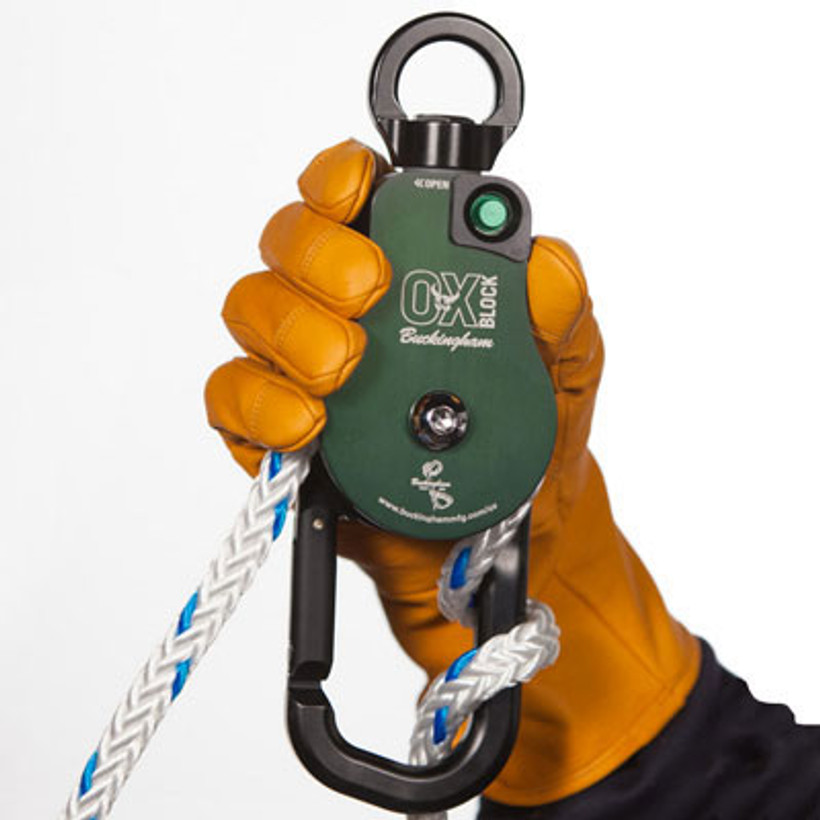

The Ox Block from Buckingham combines a rope snatch block with an integrated friction bar used for hurt man rescue, lowering loads, snubbing loads, and raising loads. It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the Ox Block. The Ox block replaces standard handline blocks, parted blocks, and various snatch blocks. The Ox Block also has greater Working Load Limits than blocks of similar size.
Details
Ox Block Use and Maintenance Video
Ox Block Instructions and Warnings PDF
- Sheave to Eye: MBS 10000 lbf/WLL 2500 lbf
- Hook to Eye: MBS 6000 lbf/WLL 1500 lbf
- Rope Max: 5/8"
- Sourse: USA
- Video 1:
- kabLN9yTpgU
- Video 2:
- xSA9FBigHa0
- Color:
- Black/Green
- Item Status:
- Active
- Height:
- 10.25"
- Manufacturer Part Number:
- 50061
- Country of Manufacture:
- US
- Material:
- Aluminum
- Width:
- 3 in
