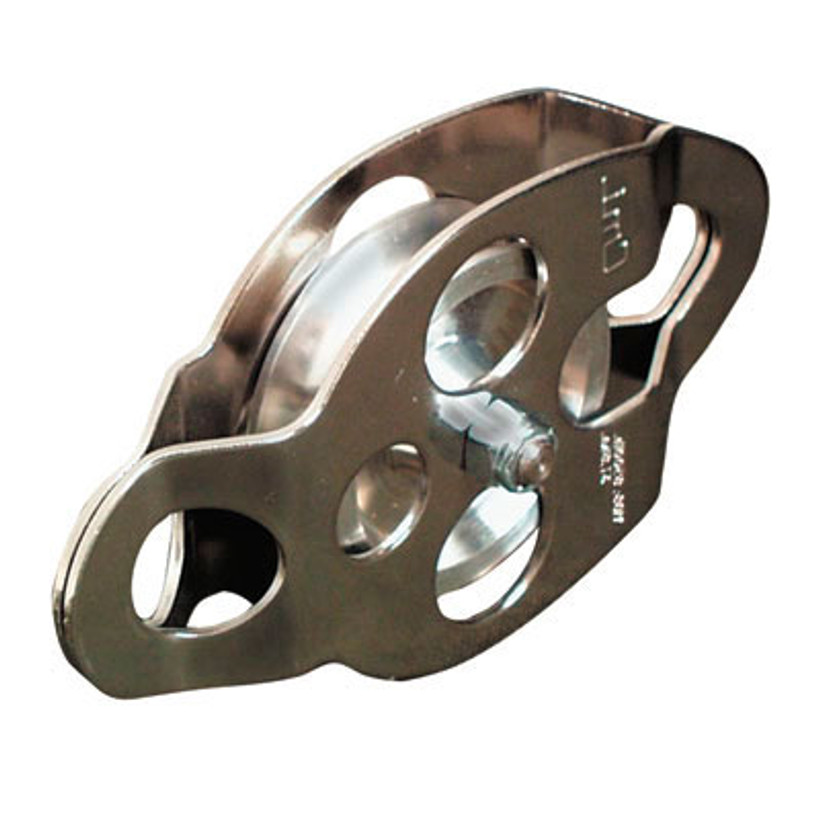

CMI RP111 Double Ended Pulley

$51.99
SKU:
15218
UPC:
000194354378

By using the extra rigging hole at the bottom of the pulley, theRP111 double ended pulley from CMI can be daisy chained together in block and tackle fashion or the lower hole can be used to direct the load.

$51.99

Description

By using the extra rigging hole at the bottom of the pulley, theRP111 double ended pulley from CMI can be daisy chained together in block and tackle fashion or the lower hole can be used to direct the load.

Details

Stainless Steel sideplates, 2 3/8" Aluminum sheave, Bushing, and Stainless Steel axle.

MBS Rope Capacity Size Weight Efficiency
8500 lbs 5/8" 5.75" x 3" 0.7 lb 91.4%
Height:
5.75"
Length:
3.2 in
Material:
Stainless Steel
Tensile Strength:
8,500 lbs ( 37.8 kN )
Width:
3.25 in
WLL:
850 lbs ( 3.7 kN )
Meets ANSI Requirements:
Yes
Sheave Diameter:
2.4"
Country of Manufacture:
US
Manufacturer Part Number:
RP111
