DMM

DMM Small Impact Rigging Block

$449.99
SKU:
33784
UPC:
5031290201056

The DMM Small Impact Rigging Block was designed for use in the tree care industry when loads may be dropped into rigging with considerable impact forces. The combination of high quality materials and advanced production processes has ensured a rope friendly, durable and robust product. During design each Impact Block has gone through a thorough dynamic and static testing regime, the end result is a highly functional product with an impressive strength to weight ratio.

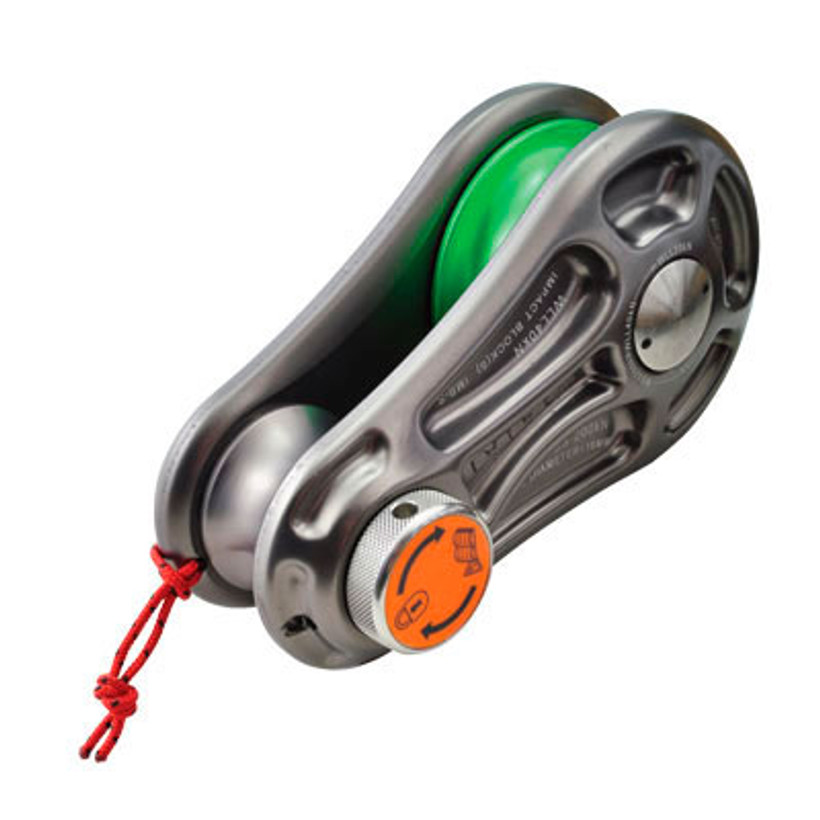

Active slide of DMM Small Impact Rigging Block

Description

The DMM Small Impact Rigging Block was designed for use in the tree care industry when loads may be dropped into rigging with considerable impact forces. The combination of high quality materials and advanced production processes has ensured a rope friendly, durable and robust product. During design each Impact Block has gone through a thorough dynamic and static testing regime, the end result is a highly functional product with an impressive strength to weight ratio.

Details

360 View

Product Datasheet

Impact Block Testing Video

Impact Block Configurations Video

DMM Impact Black User Guide (PDF)

MBS: 200kN

WLL: 40 kN

Maximum rope diameter: 5/8" (16 mm)

Weight: 1.86kg

Source:  Made in Wales



Features

  • Rounded edges to cheekplates maintain low rope abrasion when rope is fed ‘unfair’
  • Fairlead flares help maintain high working efficiency
  • Thrust surfaces increase tolerance to external loading of spindle and anchor pin
  • Lightweight attachment sling facilitates hauling of block, sling and rope to the climber and helps with handling, in tree stowage and workshop storage
  • Direct connection to cordage, the anchor slings helps ensure correct neighbour component compatibility
  • High efficiency oilite bushings to reduce friction
  • Individual serial marking



Technical Specifications

  • CE certification to European Machinery Directive 2005
  • Hot forged cheek plates in 6082-T6 aluminium for high strength to weight ratio
  • CNC machined from 6082-T6
  • Anodised to EN-12373-1:2001 Class I0EI Sealed for corrosion protection
  • Stainless Steel 303 anchor pin
  • Efficient and robust Bronze self lubricating oilite bushings
  • 6082-T6 aluminium alloy sheaves
Certifications:
Yes
Manufacturer Part Number:
IMB-S
Country of Manufacture:
GB
