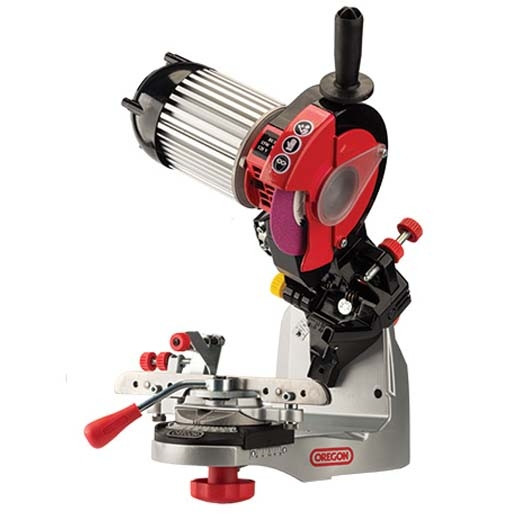

Oregon 520-120 Premium Chain Grinder

$40.99 - $530.99
SKU:
PID3893

This Oregon Bench-Mount Chain Grinder is a durable machine built with the quality and features needed for frequent high-volume chain sharpening. Comes with 1/8in., 3/16in. and 1/4in. grinding wheels for sharpening chain pitches up to 0.404in. Also includes built-in light, wheel-dressing brick and a template for pitch, depth-gauge setting and wheel contour. Meets ANSI standards.

$40.99 - $530.99
Options
Adding to cart... category.add_cart_announcement

Description

This Oregon Bench-Mount Chain Grinder is a durable machine built with the quality and features needed for frequent high-volume chain sharpening. Comes with 1/8in., 3/16in. and 1/4in. grinding wheels for sharpening chain pitches up to 0.404in. Also includes built-in light, wheel-dressing brick and a template for pitch, depth-gauge setting and wheel contour. Meets ANSI standards.

Details

  • 3400 RPM, 3/8 HP direct drive motor provides enough power for daily heavy-duty grinding
  • Durable, long-lasting cast aluminum chassis
  • Variable motor grind angle to enable multiple adjustments
  • Safety shield with integrated light 3-ft. cord with 3-prong grounded plug
  • One-way motor rotation for greater operator safety
  • Large motor fan and durable T-shaped cooling fins for excellent temperature regulation
  • Easy-to-use controls to make precise adjustments
  • Securely held chain parts to reduce risk of operator injury
  • Self-centering vise provides equal grind angles without adjustment, clamping to all chain sizes from 1/4in. to 0.404in. pitch
  • Standard chain vise attachment fits 1/4in., 0.325in., 3/8in. and 0.404in. pitch chains
  • 1/8in. vitrified grinding wheel sharpens 1/4in., 0.325in. (except Oregon 20 series) and 3/8in. (Oregon 91 series only) pitch chains
  • 3/16in. vitrified grinding wheel sharpens 0.325in. (Oregon 20 and 95 series only) and 3/8in. (except Oregon 91 series)
  • 1/4in. vitrified grinding wheel sets depth gauges
  • Motor head can be raised to create more space for filing depth gauges
  • Large indexing chain stop provides a larger surface area, accommodating large chain types
  • Tripod stand Item# 554532 sold separately
  • Additional wheels sold separately: 1/8in. Item# OR534-18, 3/16in. Item# OR534-316 1/4in. Item# OR534-14, 5/16in. Item# OR534-516



  • Manufacturer's Warranty 12 months parts / 12 months labor
  • Ship Weight 19.0 lbs
  • Product Type Grinder
  • Mount Type Bench
  • Rated RPM 3400 Motor 3/8 HP, 4.3A
  • Volts 120 AC
  • Watts 300
  • Chain Pitch (in.) 1/4–0.404
  • Bore Diameter (in.) 7/8"
  • Wheel Diameter (in.) 5.75
  • Arbor Size (in.) 7/8"
  • Bolt Hole Shape Round
  • Wheel Included Yes
Country of Manufacture:
IT
Manufacturer Part Number:
520-120
