Petzl

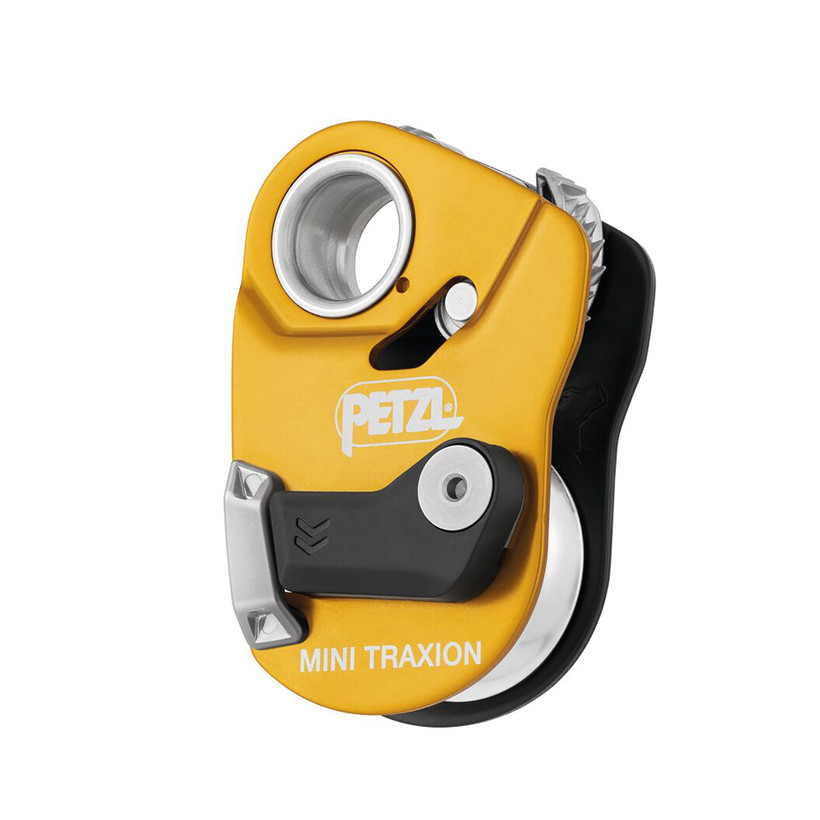

Petzl Mini Traxion

$159.99
SKU:
UPC:
3342540841871

High-efficiency, openable progress-capture pulley. Designed for hauling and rescue, the Petzl MINI TRAXION is an openable progress-capture pulley that allows the rope to be installed while the pulley is connected to the anchor. The large-diameter sheave mounted on sealed ball bearings provides excellent efficiency (93 %). The cam can be locked in the open position so the device can be used as a simple pulley.

Active slide of Petzl Mini Traxion

Description

High-efficiency, openable progress-capture pulley. Designed for hauling and rescue, the Petzl MINI TRAXION is an openable progress-capture pulley that allows the rope to be installed while the pulley is connected to the anchor. The large-diameter sheave mounted on sealed ball bearings provides excellent efficiency (93 %). The cam can be locked in the open position so the device can be used as a simple pulley.

Details

High-efficiency progress-capture pulley designed for hauling and rescue:
- Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency (93 %), even when hauling heavy loads
- Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
- For use on 7 to 11 mm diameter ropes
Simple to use:
- Openable side plate allows the rope to be easily installed while the pulley is connected to the anchor, limiting the risk of dropping it
- Triple-action opening of the moving side plate is quick and easy, even with gloves
- May be used as a simple pulley by locking the cam in the raised position
- Compact and lightweight (140 g)
Durable:
- Special side plate design protects the rope path
- Stainless steel toothed cam for optimal durability

Specifications
  • Weight: 150 g
  • Certification(s): CE EN 567, UIAA
  • Material(s): Aluminum, stainless steel, nylon
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 11 mm
  • Sheave type: Sealed ball bearings
  • Sheave diameter: 32 mm
  • Working load: 2 x 2.5 = 5 kN
  • Breaking strength: 2 x 10 = 20 kN
  • Working load as progress capture pulley: 2,5 kN
  • Breaking strength as progress capture pulley: 4 kN
  • Efficiency: 93 %
  • Compatible with the RAD LINE 6 MM cord
  • Compatible with the PUR’LINE 6 MM cord only for hauling a pack
Manufacturer Part Number:
P054AA00
Country of Manufacture:
FR
