SMC

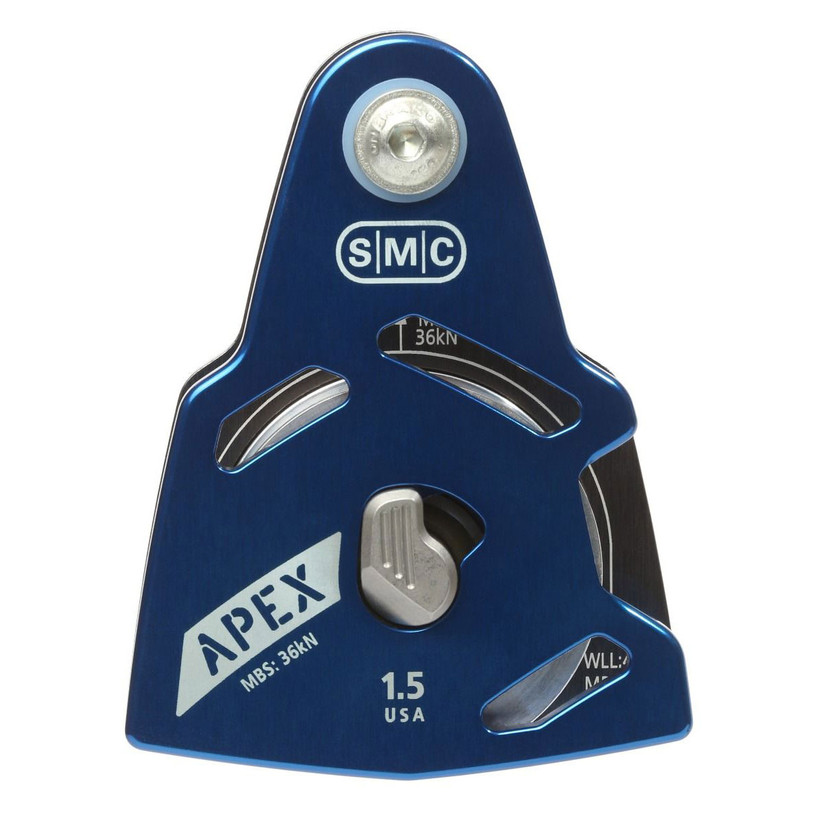

SMC Apex Direct 1.5 Pulley

$84.99
SKU:
UPC:
870449001124

The SMC Apex Direct 1.5 is a compact pulley designed for use with soft attachment points, making it much lighter than comparable pulleys with swivel attachment points. The Apex Direct is mid-line attachable and features one-handed operation that utilizes a low-profile, patented, triple-action lock mechanism. Simply closing the side plate re-engages the lock mechanism and solidly secures the rope.

Active slide of SMC Apex Direct 1.5 Pulley

Description

The SMC Apex Direct 1.5 is a compact pulley designed for use with soft attachment points, making it much lighter than comparable pulleys with swivel attachment points. The Apex Direct is mid-line attachable and features one-handed operation that utilizes a low-profile, patented, triple-action lock mechanism. Simply closing the side plate re-engages the lock mechanism and solidly secures the rope.

Details

Dimensions: 3.8” x 2.9”
Weight: 7.3oz (208g)
MBS: 38kN
WLL: 9.5kN
Rope size: up to 13 mm
Sheave Major Diameter: 2.0”
Sheave Material: Aluminum

  • Efficient sealed bearings
  • PMP side plates - designed to be prusik minding
  • Aluminum, Stainless Steel
  • Anodized, Blue/Grey
  • MADE IN USA
Item Status:
Active
Manufacturer Part Number:
165110
Country of Manufacture:
US
