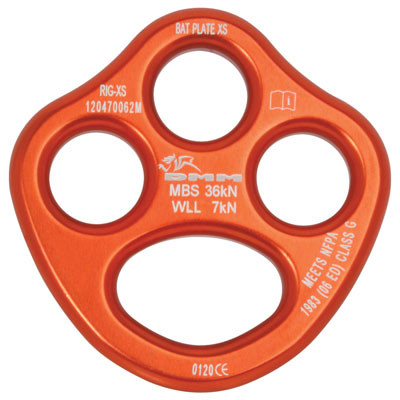

DMM Bat Rigging Plate XS

$32.45
SKU:
35725
UPC:
5031290202770

The Bat XS Rigging plate from DMM is quite strong despite its very small size. The machined holes can accommodate most carabiners and textiles up to 13mm. The rope friendly surfaces give the tree climber the option to use the plate with hardware or software.

$32.45

Description

The Bat XS Rigging plate from DMM is quite strong despite its very small size. The machined holes can accommodate most carabiners and textiles up to 13mm. The rope friendly surfaces give the tree climber the option to use the plate with hardware or software.

Details

Harness Bridge Hardware Video



MBS: 36kN

WLL: 7kN

Size: 62mm x 62mm x 8mm

Size: 2-3/8" x 2-3/8" x 5/16"

Source:  Wales, UK



  • 19mm holes for connector compatibility
  • ‘Textile friendly’ surfaces with large radii
  • High strength to weight ratio
  • Individual serial number
  • CNC machined from high strength, heat treated, 7075 T6 Aluminium alloy
  • Colour anodised to EN12373-1:2001 Class 10E1 for corrosion protection and identification
  • CE certified to EN795(b):1996
  • CE certified to EN354:2002
  • Certified to NFPA 1983 (06Ed) Class G
Product Type:
Plates
Certifications:
CE 0120
Height:
2.44" (62mm)
Color:
Orange
Length:
2.4 in
Material:
Aluminum
Tensile Strength:
8,092 lbs ( 35.9 kN )
Width:
0.39 in
WLL:
809 lbs (3.5 kN)
Country of Manufacture:
GB
Manufacturer Part Number:
RIG-XS-OR
