Working ropes can easily be wrapped and unwrapped without removing the RC-1000 from either its main anchor point or the top attachment point. The bottom anchor point has a large eye to accommodate a choked sling. The top attachment point makes for more convenient routing of the working rope as well as tensioning the rope, this also allows for Rapid-Slack-Removal in ropes whilst blocking down logs - a first in floating/hanging devices. The top attachment point is also designed for retaining the device in place whilst fixing the base anchor point securely and for attaching a tensioning or lifting system.

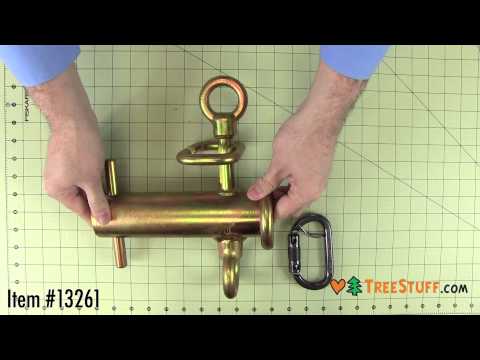

Friction Brake Comparison Video
Allowing for a 4.5:1 rope bend ratio this device can accommodate up to 14mm (9/16") rigging lines and has a Working Load Limit of 1000kg (2205lbs).
|Working Load Limit||1000kg (2205lbs)|
|Maximum Rope Size||14mm (9/16")|
|Barrel Diameter||61mm (2 3/8")|
|Length||245mm (9 5/8")|
|Width||120mm (4 3/4")|
|300mm (11 3/4")|
All specifications are current but may be modified without prior notification
- Rope Capacity:
- 9/16 in (14 mm)
- 2,204 lb (9.8 kN)
- Manufacturer Part Number:
- Country of Manufacture:
