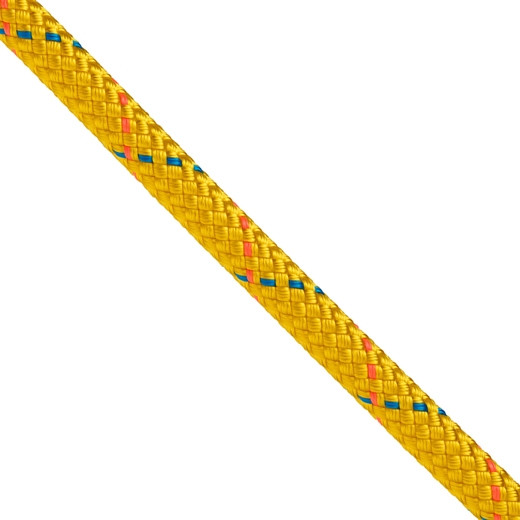

Sterling Atlas 5/8" Rigging Line

$199.99 - $739.99
SKU:
PID625

The 5/8" Atlas Rigging Line has a redesigned double-braid construction that offers an MBS of 18,000lbs while keeping the performance and handling of the thinner-diameter Atlas ropes. The new core lowers the static elongation of the Atlas, but still allows the rope to absorb the energy of a falling load and can limit peak forces in negative rigging applications. The tightly braided polyester sheath resists picking and provides great handling and knotability.

$199.99 - $739.99

Description

The 5/8" Atlas Rigging Line has a redesigned double-braid construction that offers an MBS of 18,000lbs while keeping the performance and handling of the thinner-diameter Atlas ropes. The new core lowers the static elongation of the Atlas, but still allows the rope to absorb the energy of a falling load and can limit peak forces in negative rigging applications. The tightly braided polyester sheath resists picking and provides great handling and knotability.

Details

Atlas Rigging Series Video

Diameter: 17mm

ABS: 86.3 kN (19,400 lbs)

Weight: 13.5 lbs/100'

Elongation at 300lbs: 0.4%

Elongation at 10% MBS: 4.5%

  • Redesigned double-braid construction increases strength
  • Tightly braided polyester sheath
  • Perfect for use with Port-A-Wraps and rigging blocks
Color:
Yellow
Material:
Nylon/Polyester
Tensile Strength:
18,000 lbs ( 80 kN )
Country of Manufacture:
US
Manufacturer Part Number:
AT170090046
Strand Count:
24 Strand
Diameter:
16mm (5/8")
